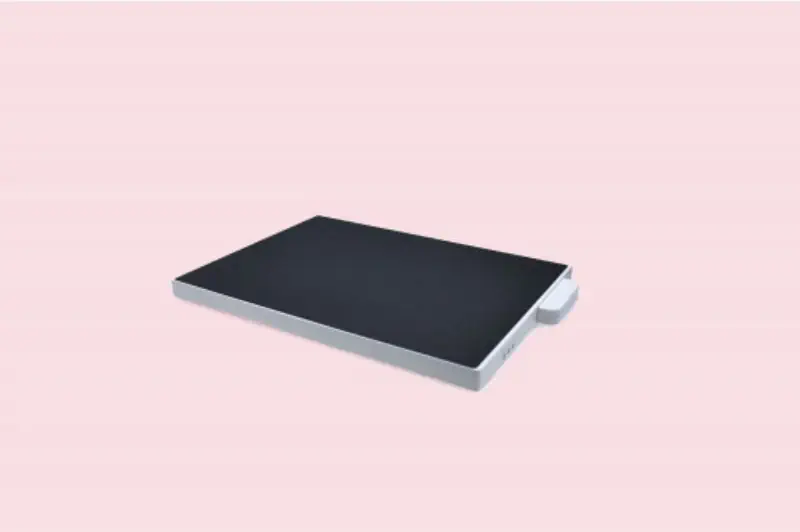

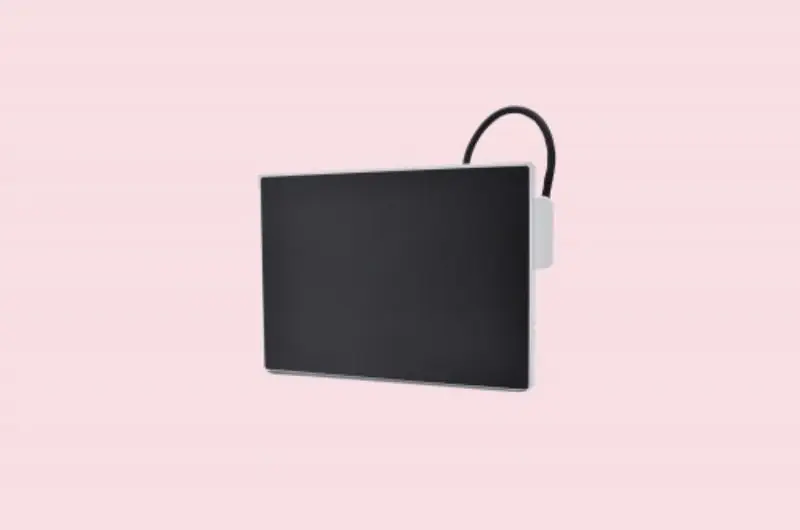

VIVIX-M Series
The Vivix-M Series is a range of flat-panel detectors specially developed to deliver the best mammography imaging in any setting. The intuitive digital mammography image acquisition software, VXvue Mammo, then processes the mammography images with specialized mammography image processing.
Easy Upgrade
The VIVIX-M Series digital mammography flat-panel allows for an easy installation:
- Anytime TM : AED (Automatic Exposure Detection) technology that automatically stops capturing exposure once the correct exposure for the image is reached.
- ISO 4090: the digital mammography flat-panel detector is the same size as a film/CR cassette.
- Special design for conventional AEC mammography systems: the mechanical part is designed to use the existing system.

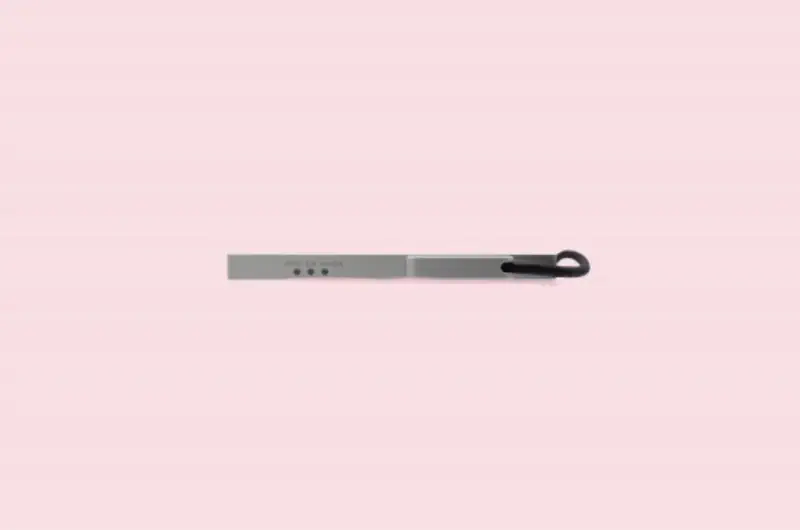

Thin Chest Wall Distance
The thin chest-to-wall distance of the Vivix-M Series mammography FPDs, being at 2mm bezel size, allows for much more convenient patient positioning. This allows the operator to easily secure the active area.

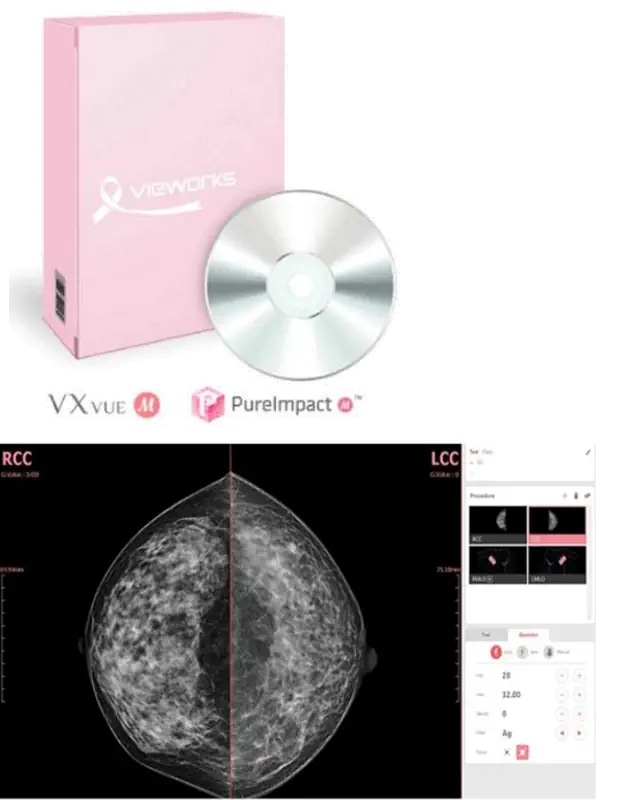

Intuitive Digital Mammography Acquisition Software
VXvue Mammo is a very easy-to-use digital mammography acquisition and viewer software that has some amazing features.
Easy management for a simple workflow
This mammography software has convenient presets for various mammography diagnostic procedures with easy registration, and automatic image processing and labelling of each view position.
The DICOM 3.0 compatibility makes it easy to integrate into your existing medical systems.
Mammography dedicated image processing
Purelmpact is a mammography dedicated image processing tool that does: peripheral enhancement, microcalcification enhancement, sharpness-preserving gridline suppression, nipple detection and density estimation.
Various image adjustment tools
Some tools include canter adjustment, auto-rotation, annotation tools, and a multi-layout.
Convenient usability
This mammography software has fast and accurate quality control with 5 different QC tools: ACP Phantom, Artifact, MFT, Flat Field and Monitor. The user-friendly interface makes this system very easy to learn with an intuitive GUI design, user-defined settings and a customizable ‘skin’.
VIVIX-M Series |
||
|---|---|---|
| 1824S | 2430S | |
| Model Name | FXMD-1008S | FXMD-2430S |
| Technology | TFT with IGZO | |
| Scintillator | CsI:TI | |
| Pixel pitch | 75 ㎛ | |
| Spatial resolution | 76.7lp/mm | |
| Pixels | 3072px x 2304px | 3840px x 3073px |
| Grayscale | 16 bit | |
| Energy range | 20 kVp - 45kVp | |
| Image acquisition time | 3 seconds | |
| Recommended cycle time | 15 seconds | |
| Data interface | Gigabit ethernet | |
| Generator interface | Auto trigger: AED mode | |
| Dimensions | 26.8cm x 19.5cm x 1.5cm | 32.8cm x 25.5cm x 1.5cm |
| Weight | 1kg | 1.2kg |
| Chest wall distance | 2mm | |
| Operating Environment | 5°C - 45°C 30% - 85% RH (non-condensing) |
|
| Power | DC 24V, 0.75A | DC 24V, 1A |
* Specifications are subject to change without prior notice
