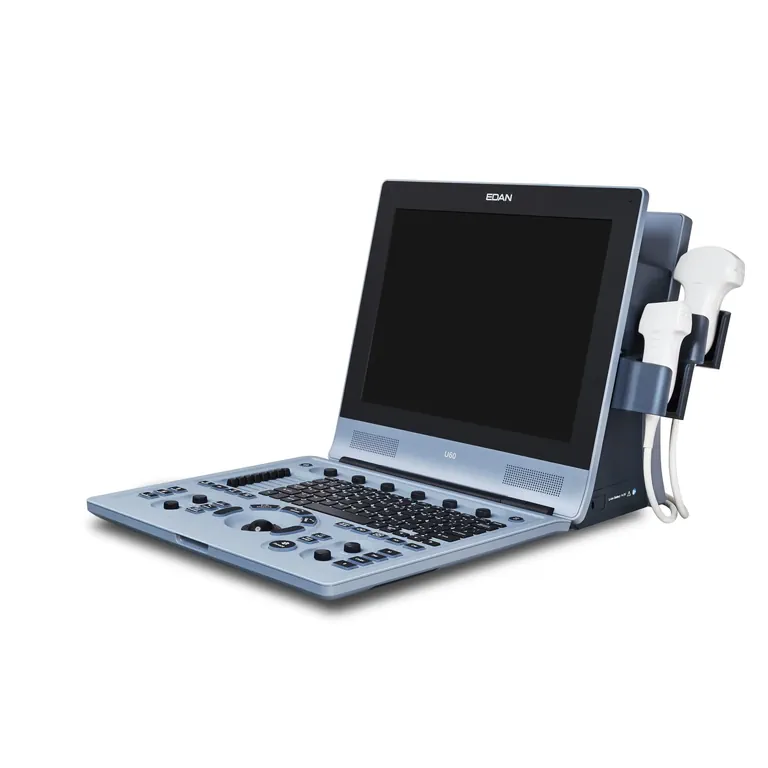

U60 Diagnostic Ultrasound System
The U60 is a superior general imaging desktop system focused on providing clear imaging to give you confident diagnosis and procedure guidance. It features a compact, user-centred design and a comprehensive set of applications to allow you the best possible solution for your general ultrasound imaging investigations
Advanced Imaging Technologies
The U60 Colour Doppler System provides excellent detail, contrast resolution and image uniformity without sacrificing penetration. The excellent colour and Doppler sensitivity are perfect for general imaging applications. The portable system can be used anywhere with pan zoom, needle guide, dual live, triplex, PW, CW, HPRF, and many other features inside. Thoughtful elements simplify the Doppler system’s operations and enhance its value.
- Tissue harmonic imaging for better details display
- Spatial compounding imaging to improve contrast resolution
- Speckle reduction imaging to reduce image noise and clutter
- Multi-beam technology to maintain high frame rates
Ergonomic Design
- Several keys for the whole procedure
- A backlit matrix keyboard and control panel
- Customizable user setting modification
- Quick image tools for optimization
- Large capacity for data management

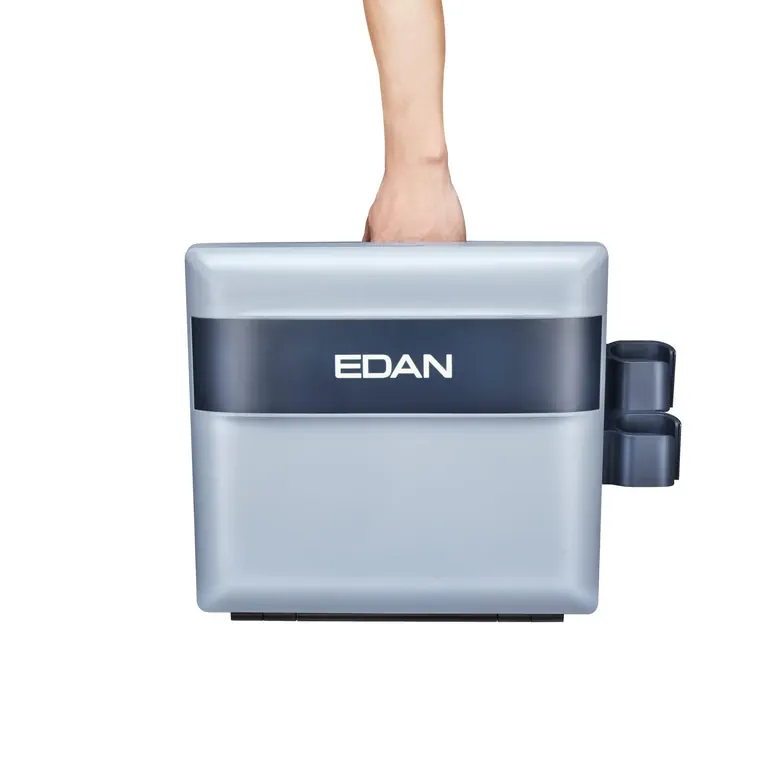

- Compact, lightweight design with an integrated battery facilitating mobility
- Large 15†monitor for easy viewing
- Dual transducer ports to connect simultaneously

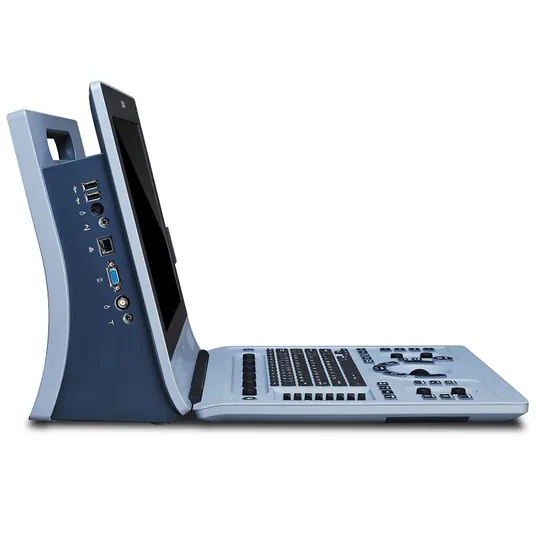

- Multiple peripheral ports for data transfer
U60 |
|
|---|---|
| System | |
| Physical Channels | 64 |
| System Dyanmic Range | 0-166dB |
| Beam Forming | Dual beam2 |
| Memory | 504MB |
| Hard Drive | 500GB |
| Operating System | Linux |
| Booting Time | ±30 seconds from off / 4s from sleep |
| Shut Down | 2 seconds |
| Dimensions (HxWxD) | 350mm x 370mm x 220m |
| Weight | Max. 8.5kg (no probe and battery) |
| Ports & Transducer | 2 active ports, 2 holders |
| Power Consumption | 100V ~ 240V | 50Hz / 60Hz | 97.4W |
| Operating Environment | 0°C ~ 40°C / 15%RH ~ 95%RH (non-condensing)/ 86kPa ~ 106kPa |
| Storage Envisronment | -20°C ~ 55°C / 15%RH ~ 95%RH (non-condensing) / 70kPa ~ 106kPa |
| Booting Time | From shut-down: 60 seconds |
| Display | |
| Display | 15" TFT-LCD monitor |
| Resolution | 1024 x 768 |
| Image Field Size | 640 x 512 |
| Video Out Size | 800 x 600 |
| Capture Size | BMP, JPG, AVI, DCM 1024 x 768 / FRM, CIN 640 x 512 |
| View Angle | right 85°, left 85°, up 85°, down 85° |
| Adjustments | Brightness and Color Temp |
| Sound | Built-in sterio speaker |
| Battery | |
| Type | Rechargable Li-ion Battery, Removable |
| Capacity | 5000mAh |
| Time | Approximately 80 minutes of typical ultrasound exman use |
| Charge time | Max. 8 hours |
| Options | |
| Optional Add-Ons |
Transducers Needle guide bracket kits Advanced DICOM (Modality Worklist, Structured Report, MPPS, Print, Storage Commitment, Quary/Retrieve) Printers Batteries 1TB SSD WIFI Footswitch: single button/double buttons, User-defined functions (freeza, save, print) Ultrasound gel warmer DVD Drive Standard PC keyboard |
* Specifications are subject to change without prior notice
