Innovision DXII Floor Type
A floor- or ceiling-mounted advanced X-ray system.
View the DK Medical virtual showroom here!
Supplier: DK Medical Systems
Innovision DXII Floor Type
The Innovision DXII Floor Type x-ray system is a very simple x-ray system with a floor, or floor-to-ceiling, mounted x-ray tube support. This radiography system delivers quality diagnostic images in accordance with the diagnostic object being examined. Large-patient and advanced applications can easily be enabled with a capacitor.
Compact Solution

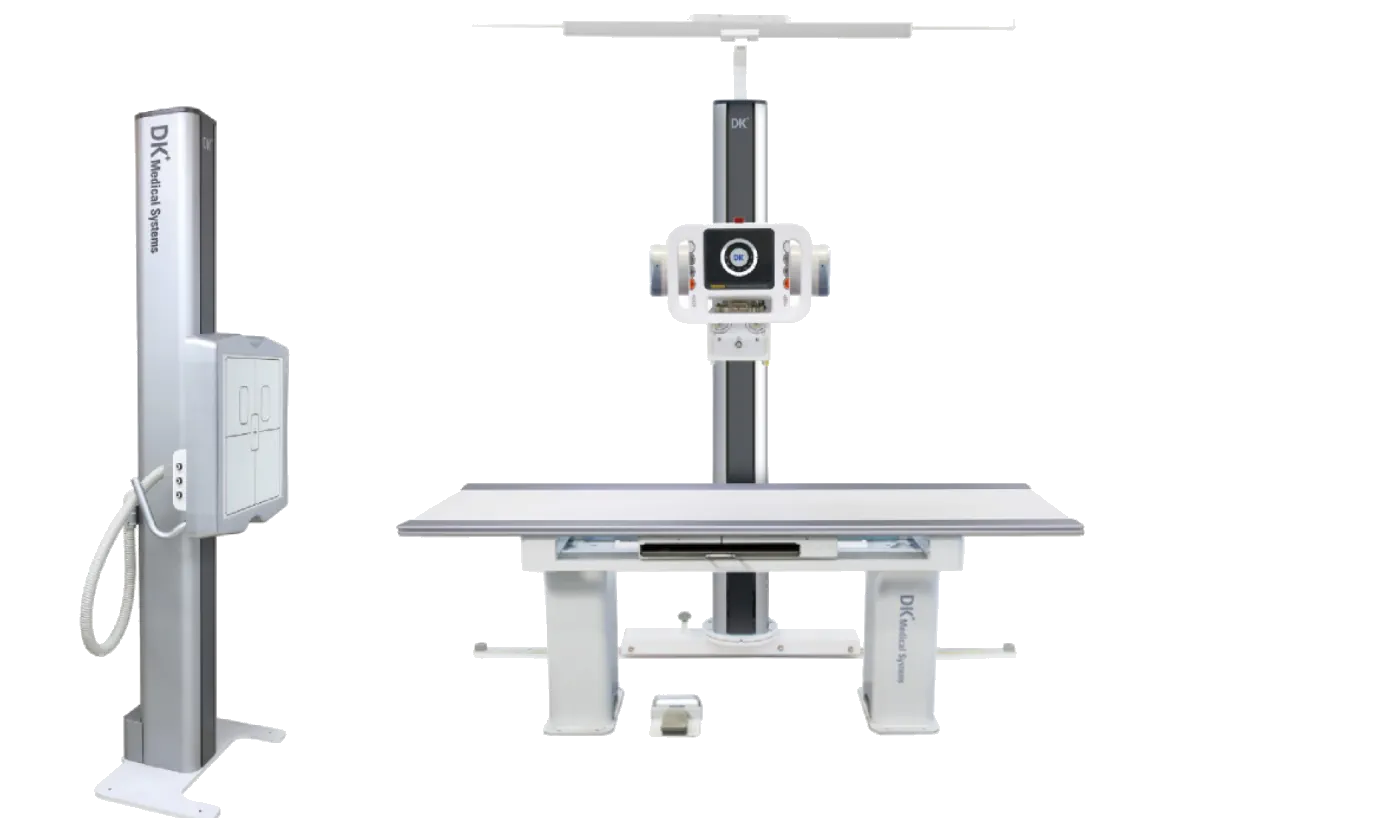

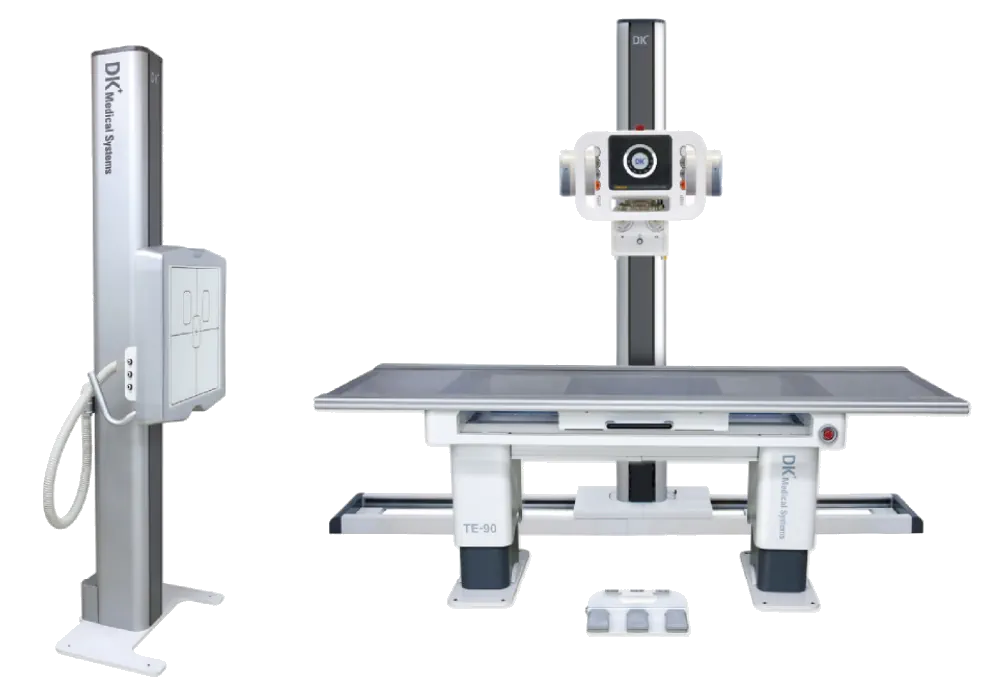

For this solution, you get an option between a stand-alone floor-mounted tube support system or a ceiling-to-floor mounted x-ray system. These floor-mounted x-ray rail systems deliver a perfect solution for smaller x-ray rooms where a ceiling-suspended x-ray tube installation will not work. Thus, delivering all the usability in a more compact setting.
Ergonomic Design
The ergonomic design of the radiography system ensures the best experience for the x-ray operator during the positioning of the x-ray equipment as well as when positioning their patients for diagnostic imaging studies. The grip handles behind the detector stand ensured that chest x-ray studies conducted always deliver the best patient positioning. The tabletop design also easily allows for the positioning of a wheelchair-seated patient.
X-ray Tube Support |
||
|---|---|---|
| SF-90B | SF-90C | |
| Type | Floor to ceiling type | Floor type (stand alone) |
| Balance System | Weight balance | Weight balance |
| Vertical Travel | 1,450mm | 1,450mm |
| Longitudinal Travel | 1,800mm | 1,800mm |
| Transverse Travel | 225mm | 225mm |
| Tube Rotation | ± 180° | ± 180° |
| Tube Swivel | ± 90° | ± 90° |
| Drive | Manually driven | Manually driven |
| Tube Height Display | Goniometer (LED light) | Goniometer (LED light) |

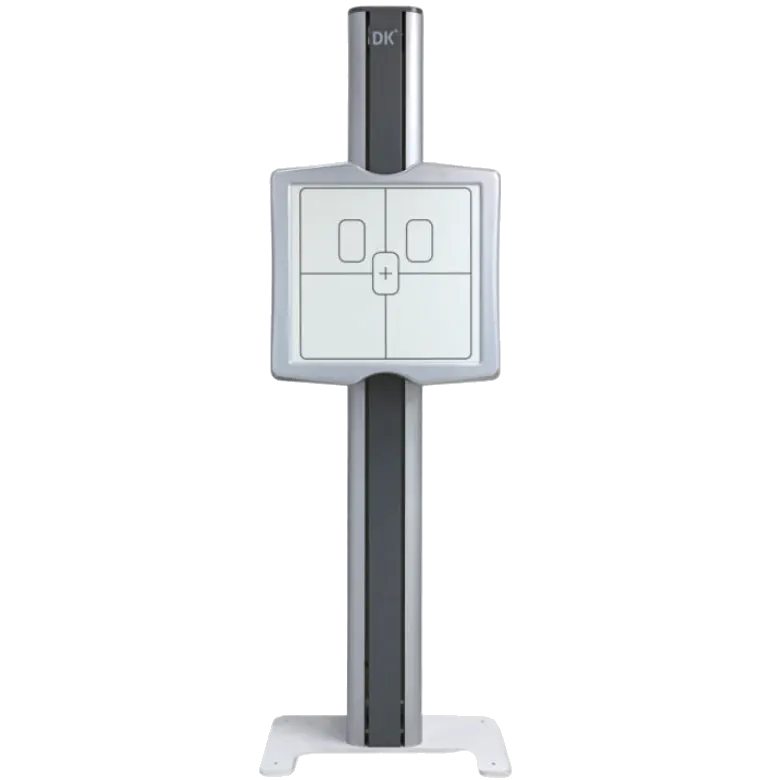

Detector Stand |
|
|---|---|
| DS-90 | |
| Type | General detector stand |
| Balance system | Weight balance |
| Vertical Travel | 1,450mm |
| Height | 2,026mm |
| Vertical Drive | Motor or maually driven |
| Vertical Lock | Electro Magnetic Lock |

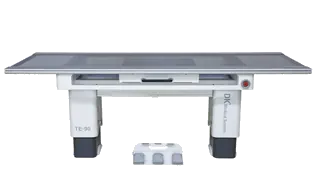

Table |
|||
|---|---|---|---|
| TE-90 | TF-90 | ||
| Type | 6-way | 4-way | |
| Dimensions (HxLxW) | Max. 856mm x 2,000mm x 800mm | Max. 700mm x 2,000mm x 800mm | |
| Longitudinal travel | 600mm | 600mm | |
| Transverse travel | 300mm | 225mm | |
| Vertical travel | 390mm | None | |
| Bucky movement range | 479mm | 479mm | |
| Vertical Drive | Actuator type | None | |
| Bucky type | Casette tray type (basic) | Casette tray type (basic) | |
| Tabletop material | Acryl (basic) | Acryl (basic) | |
| Melamine (option) | Melamine (option) | ||
* Specifications are subject to change without prior notice
