Innovision DXII Elin-T4
Optimized ceiling suspended full x-ray system.
View the DK Medical virtual showroom here!
Supplier: DK Medical Systems
Innovision DXII Elin-T4

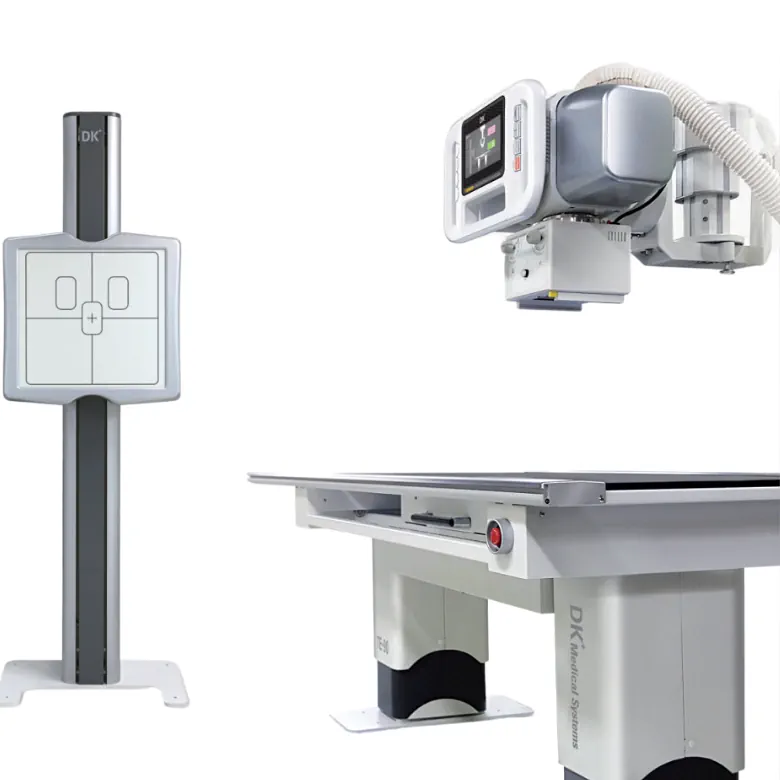

The Elin-T4 X-ray system creates the perfect solution for a ceiling-suspended X-ray system that can perform advanced X-ray applications with optimized usability.
The ergonomic and easy-to-use system allows operators the best experience possible when preparing for and performing radiographic examinations. This ceiling-suspended x-ray system (Innovision ELIN-T4) enables advanced x-ray applications and drastically reduces redundant work steps
Easy Operation
This digital radiography system has been developed with an ergonomic design. Not only is this for enhanced patient comfort but also to ensure that the system operator has the best experience possible when using this digital x-ray system by using the following:
- Tube synchronized with Table Detector tray

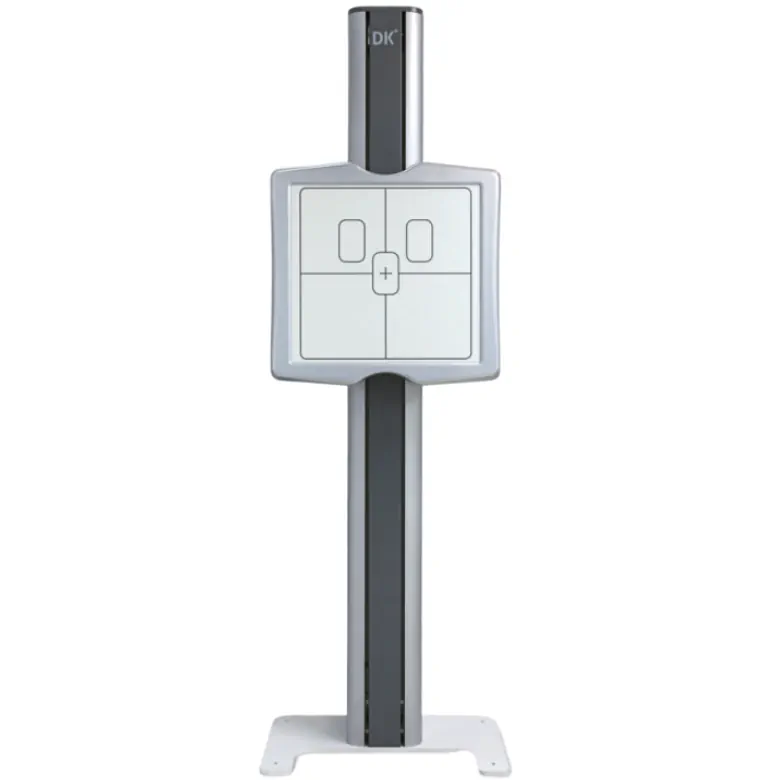

- Tube synchronized with Bucky Stand Detector Tray
- The Tube Support has a long vertical coverage AND
- 7†LCD Display on the Handle Bar which displays the x-ray tube’s angle in degrees and toward the positioned detector tray.
Image Stitching
The new auto stitching function automatically merges three or two x-ray images after shooting for Whole-spine and Long Leg. Orthopaedic diagnosis will benefit from this innovative application software in areas such as the assessment of scoliosis. Potential applications include, for example, accurate measurement of spine angle and distance between anatomic entries.
Ergonomic Design

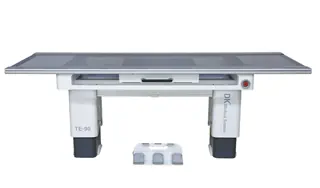

The x-ray table for the Elin-T4 has a transparent tabletop and an open base making patient positioning and wheelchair positioning for the x-ray study very simple. The x-ray tube and detector tray synchronization also makes patient positioning and system preparation for a study much faster optimizing your workflow.
X-ray Tube |
|
|---|---|
| ELIN-T4 | |
| Balance System | Spring Balance |
| Vertical Travel | 1,500mm |
| Longitudinal Travel | Max. 2,820mm |
| Transverse Travel | Max. 2,430mm |
| Tube Rotation | ± 135° |
| Tube Swivel | ± 180° |
| Drive | Motor & manually driven |
| Tube Height Display | Tube angle & SID display |
| LCD Type | |
Detector Stand |
|
|---|---|
| DS-90 | |
| Type | General detector stand |
| Balance system | Weight balance |
| Vertical Travel | 1,450mm |
| Height | 2,026mm |
| Vertical Drive | Motor & maually driven |
| Vertical Lock | Electro Magnetic |
Table |
|||
|---|---|---|---|
| TE-90 | |||
| Type | 6-way | ||
| Dimensions (HxLxW) | Max. 856mm x 2,000mm x 800mm | ||
| Longitudinal travel | 600mm | ||
| Transverse travel | 300mm | ||
| Vertical travel | 390mm | ||
| Bucky movement range | 479mm | ||
| Vertical Drive | Actuator type | ||
| Bucky type | Casette tray type (basic) | ||
| Tabletop material | Acryl (basic) | ||
| Melamine (option) | |||
* Specifications are subject to change without prior notice
