Innovision DXII 3-in-1

Innovision DXII 3-in-1

The Innovision DXII 3-in-1 full radiography system is an innovative new design that creates the perfect installation for X-ray rooms with very limited space. Thie Innovision X-ray range has realized the safe, easy, and fast acquisition of clear radiographic images at lowered levels of radiation dose.

Optimized Space

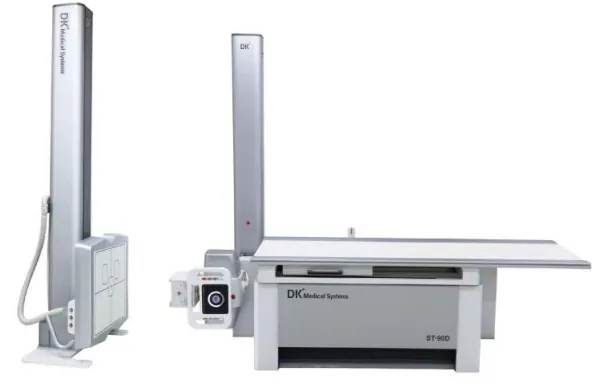

With a typical X-ray system, you will need plenty of space for the installation of the x-ray generator, tube stand, bucky stand, and table. With the ST-90D your x-ray system will take up a lot less room due to its integrated design. This radiography system consists of a combined design of an X-ray tube support, X-ray table, and X-ray generator thus efficiently minimizing the space required.

Ergonomic Design

The user-friendly design, including an easy-to-use control panel and a synchronized tube to table bucky, this X-ray system is very simple to use. The ergonomic design enables:

• Simple moving of the bucky when positioning the tube stand with the synchronization function.
• Automatically turns on the collimator lamp when the foot pedal is pushed for easy positioning.

Advanced Applications

The 3-in-1 X-ray system also features some advanced diagnostic imaging applications. Both the tube and bucky can be positioned very close to the floor level to easily enable the standing knee position for an X-ray without the need for any stools or steps.

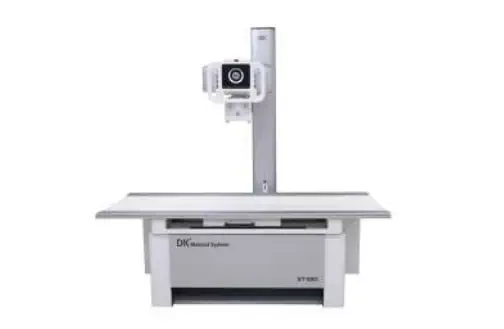

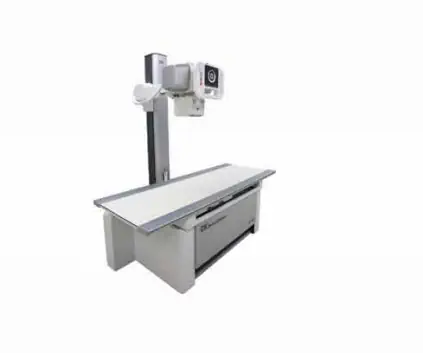

3-in-1 System
		ST90D
Tube Stand	Balance System	Weight balance
	Vertical Travel	1,450mm
	Longitudinal Travel	1,400mm
	Transverse Travel	225mm
	Tube Rotation	± 90°
	Tube Height Display	Goniometer (LED light)
Tabletop	Length	2000mm
	Width	742mm
	Height	700mm
	Longitudinal Travel	600mm
	Transverse Travel	225mm
Lock Type		Electro Magnetic Lock

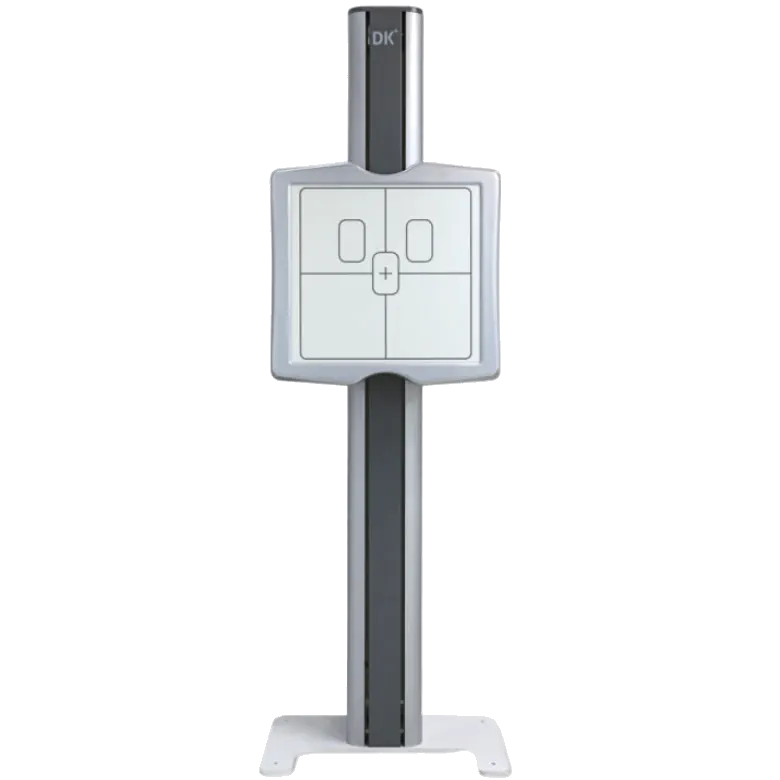

Detector Stand
	DS-90
Type	General detector stand
Balance system	Weight balance
Vertical Travel	1,450mm
Height	2,026mm
Vertical Drive	Manual or motor driven
Vertical Lock	Electro Magnetic Lock
Detector	17" x 17"

Generator
kW	50kW	40kW
kV Range	40kV - 150kV	40kV - 125kV
Power output	320,A at 150kV	300mA at 125kV
	500mA at 100kV	500mA at 80kV
Second range	1ms ~ 10sec	1mx ~ 10sec
Frequency	40kHz	40kHz
mA range	10mA - 630mA	10mA - 500mA
mAs range	0.1mAs ~ 500mAs	0.1mAs ~ 500mAs
Line voltage (phase)	380VAC 50/60Hz	380VAC 50/60Hz
	Three phase	Three phase
Tube	E7884X (Toshiba)	E7239X (Toshiba)

* Specifications are subject to change without prior notice
